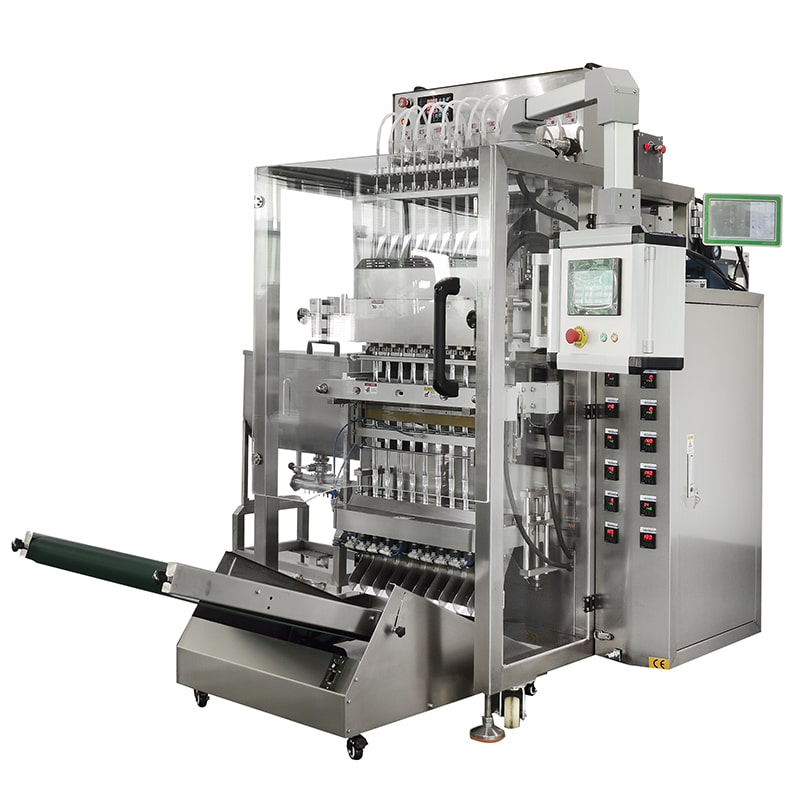

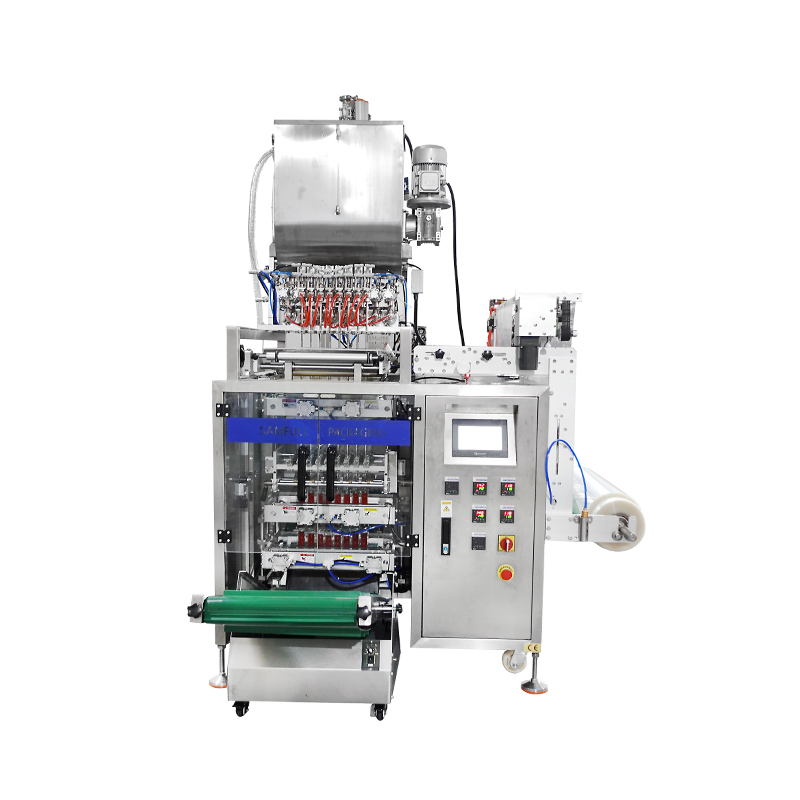

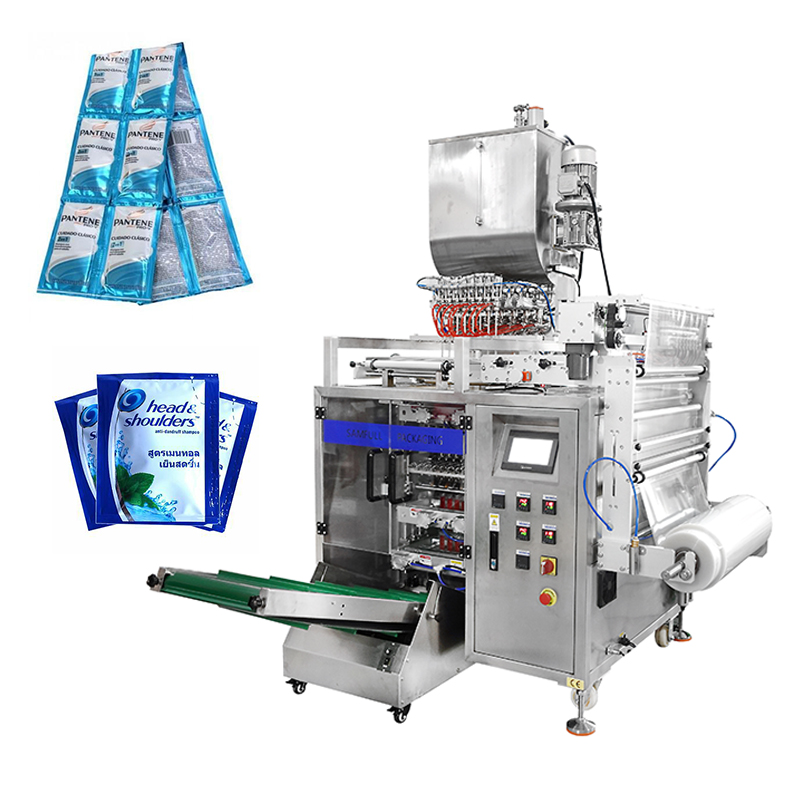

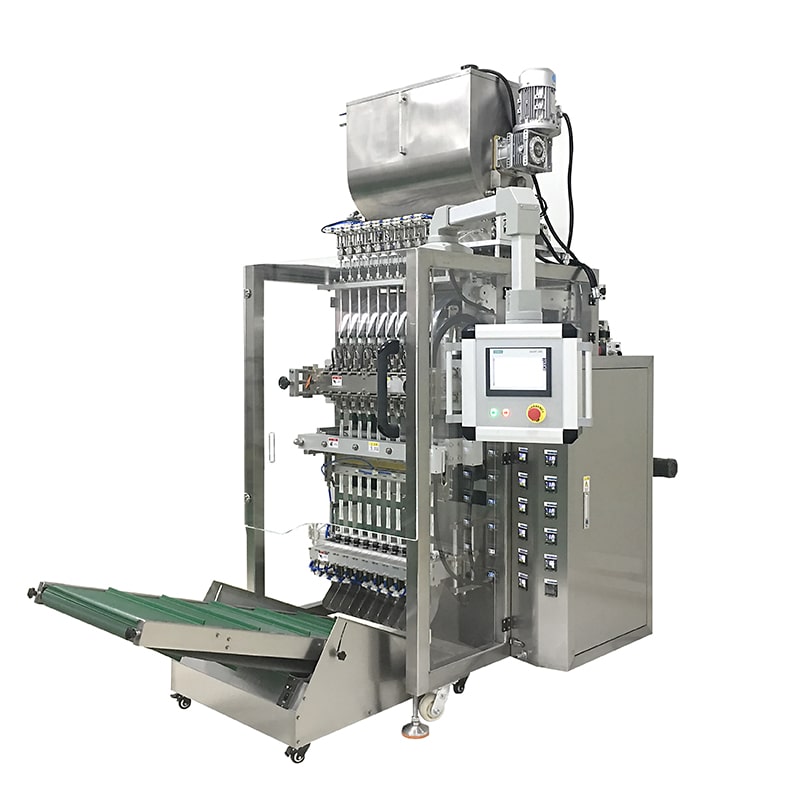

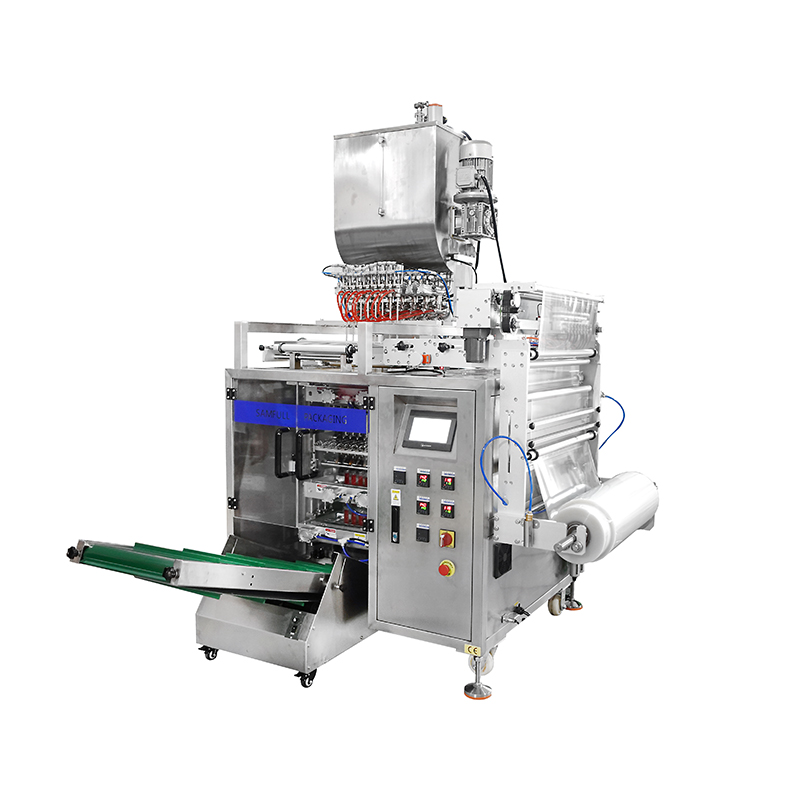

Shampoo Gel Sachet Multilane VFFS Form Fill Seal Packing Machine

The machine is suitable for the food, medicine, chemical industry, cosmetics industry of liquids, sauce of measurement packing, meet the requirement of high speed and high production, up to 360 sachets per minute.

We are a packaging solution supplier with 14 years of packaging equipment production and design. If you cannot find equipment that meets your requirements on our website, please tell us your packaging requirements.

Inquire Now Email Us

Videos

Four sides sealing liquid sachet ( 8 tracks )
Bottle shape easy tear notch stick pack

Features

The whole machine is controlled by PLC program. The function parameters are set by man-machine interface touch screen. The main electrical components are famous brands at home and abroad. The control is stable and the operation is simple;

It has functions of automatic filling, measuring, bag making, sealing, printing batch, counting, and finished product output;

The horizontal seal adopts independent servo control, the structure is simple and reliable;

The film running stable and has the function of cursor correction and compensation;

The storage bin adopts continuous automatic vacuum feeding;

The filling machine is detachable, easy to install, easy to clean and disinfect;

4 to 12 lanes can be packed according to the width of the bag;

The machine can be connected with the mending line and automatic cartonning equipment to be a complete line.

Technical Specification

Model	SF280BY	SF560B
Track numble	4-6 track	8-12 track
Filling method	piston filling
Capacity	Max 35 cycle/min
Sachet size	L: 50-160mm W:17-60mm
Film roll size	Max 280mm	Max 560mm
Sealing type	Back sealing/stick bag
Power	1N+PE/50HZ/AC220V/3.5K	1N+PE/50HZ/AC220V/5KW
Air Comsuption	0.8 Mpa	0.8 Mpa
