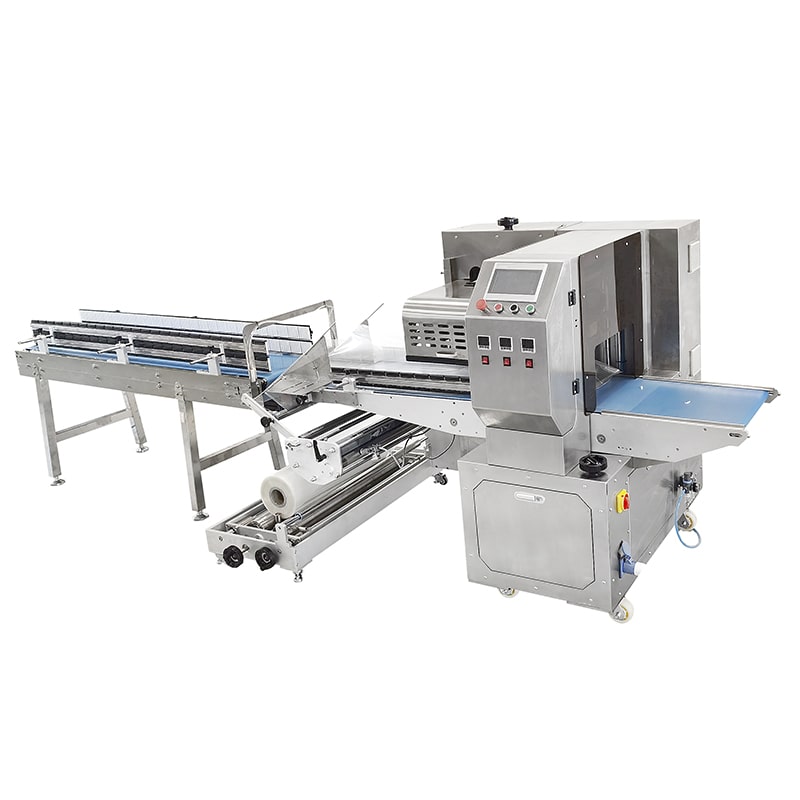

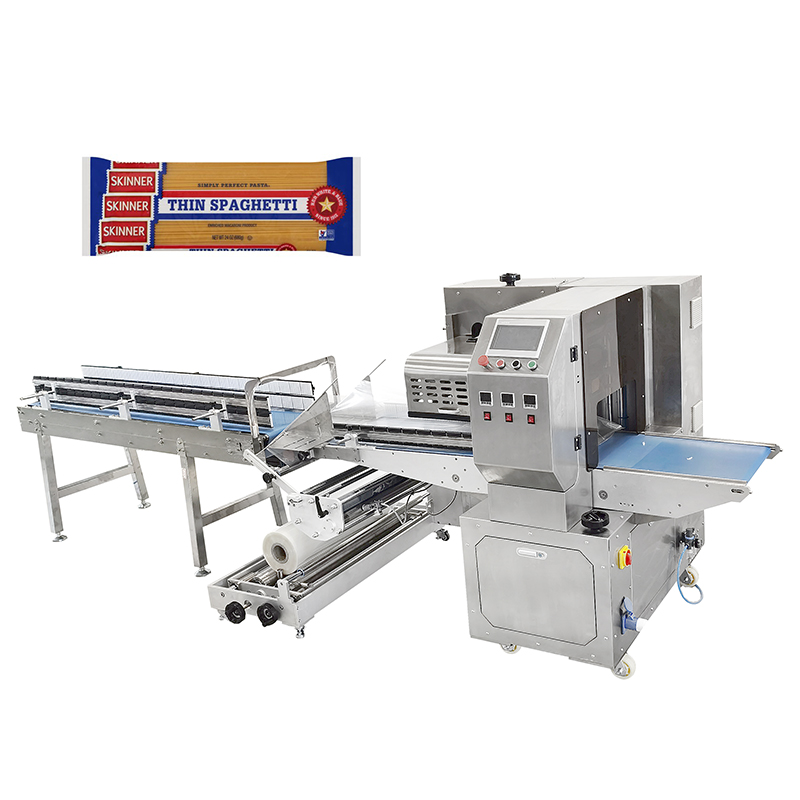

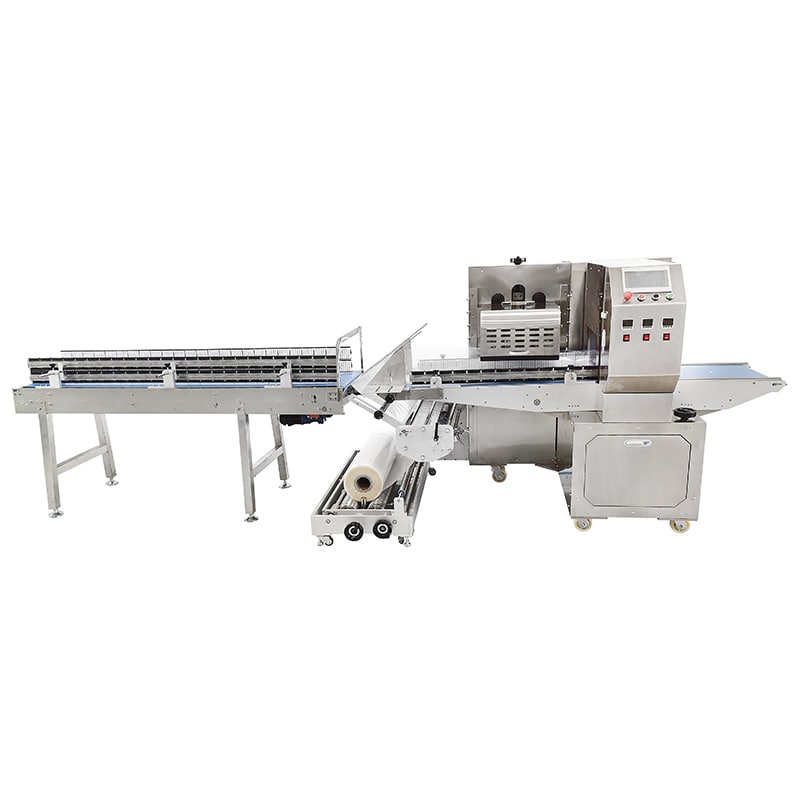

Pasta Spaghetti Wrapping Machine

Boju high quality full servo control flow wrap pillow packing machine for food and non-food.

We are a packaging solution supplier with 14 years of packaging equipment production and design. If you cannot find equipment that meets your requirements on our website, please tell us your packaging requirements.

Inquire Now Email Us

Videos

Noodles spaghetti flow wrap machine

Features

The key parts of machinery adopt 304 stainless steel structure, accord with hygienic standard of food QS and medicine GMP;

Servo control machinery is more intelligent and fool, ordinary employees can be familar with poeration in a short time;

The function of empty bag defense is to realize meterial packaging, no material shutdown, save packaging film and improve packaging efficiency;

Packaging materials do not need to adjust the position of material, directly input the length of the bag and length of material, cutting position automatically correct.

Memory function to realize automatic storage of packaging parameters, no not need to change the parameter setting while replace new material;

Anti-cutting function, reduce,material damage, protect the knife, realize the standard requirement of sealing without leakage;

Changing the length of the packaging bag does not need to adjust the cutting speed. It is easy to use directly;

Fault self-diagnosis function, fault display at a glance, operator directly troubleshooting according to the fault;

The srvo drive system is simple, easy to operate, stable in operation and vonvenient in maintenance;

Servo packaging machine expands powerful functions, can be more simple with other production equipment to form a complete set of automatic production lines;

Mature servo control technology, with overload protection, leakage protection, fault alarm and other safety devices to protect it and expand the lifetime of machine.

Technical Specification

Output	Up to 200 products per minute Up to 40 m/min film speed Product and film characteristic may affect machine output
Size Range
Package cut-off length	50-6000mm
Product width	max.140mm
Product height	max.60mm
Packaging Material Reel
Reel diameter	≤300mm
Core diameter	≤75mm
Packaging material width	max.300mm
Weight	max. 25KG
Connections
Voltage	220V,50HZ
Power usage	3KW
Machine weight	600kg
Machine dimensions	L3900mmW850mmH1500mm
Blade cut type	Rotary cutter
Motor configuration	Dual servo
Optional Device	date printer, auto feeder, gas charger, etc.
