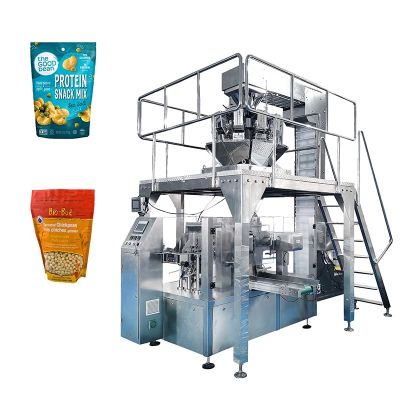

Bean Pulse Grains VFFS Weighing Packing Machine

This automatic weighing and packing vffs machine is suitable for granule and particle products, like beans, nuts, grain, snacks and so on.

We are a packaging solution supplier with 14 years of packaging equipment production and design. If you cannot find equipment that meets your requirements on our website, please tell us your packaging requirements.

Inquire Now Email Us

Videos

Pulse lentils seeds vffs form fill seal

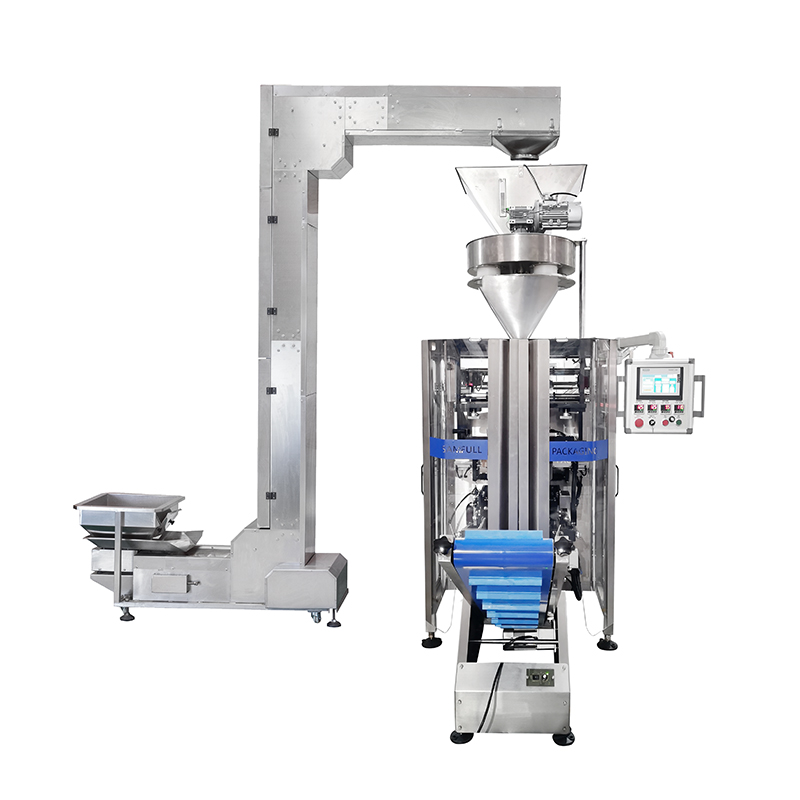

Volumetric weigher vffs machine

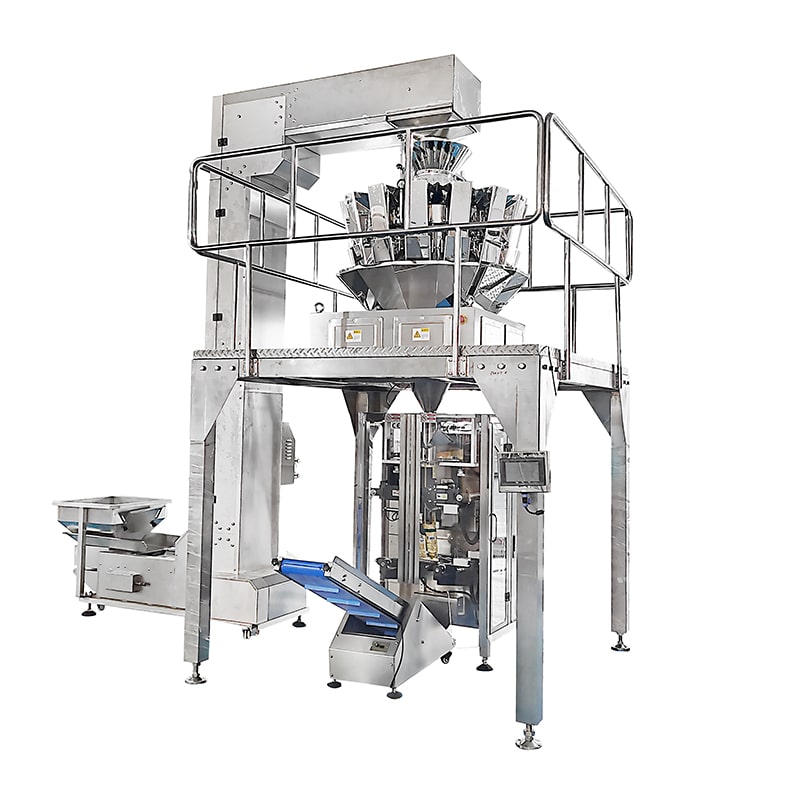

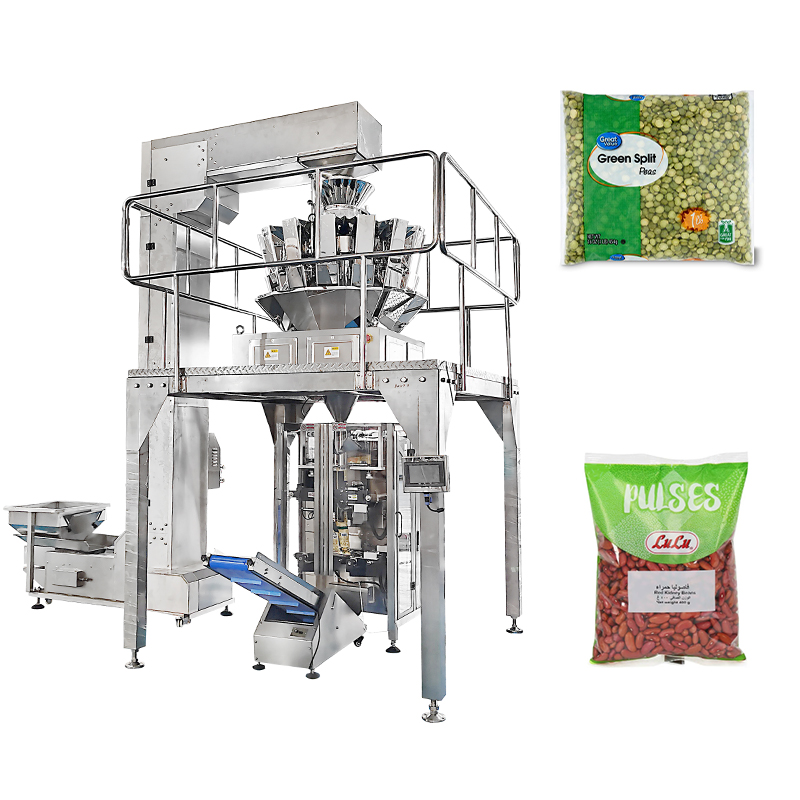

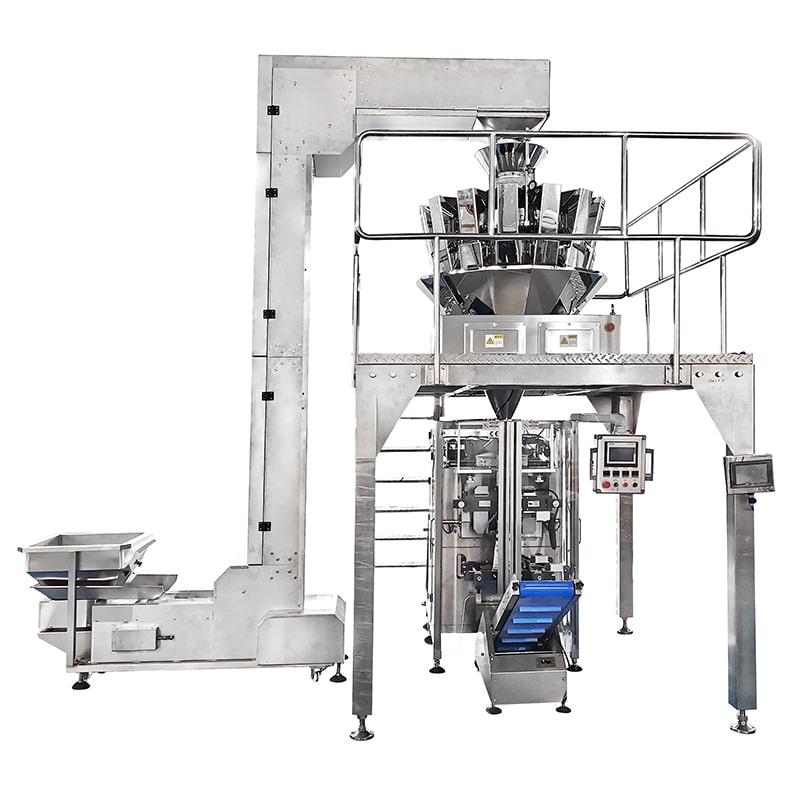

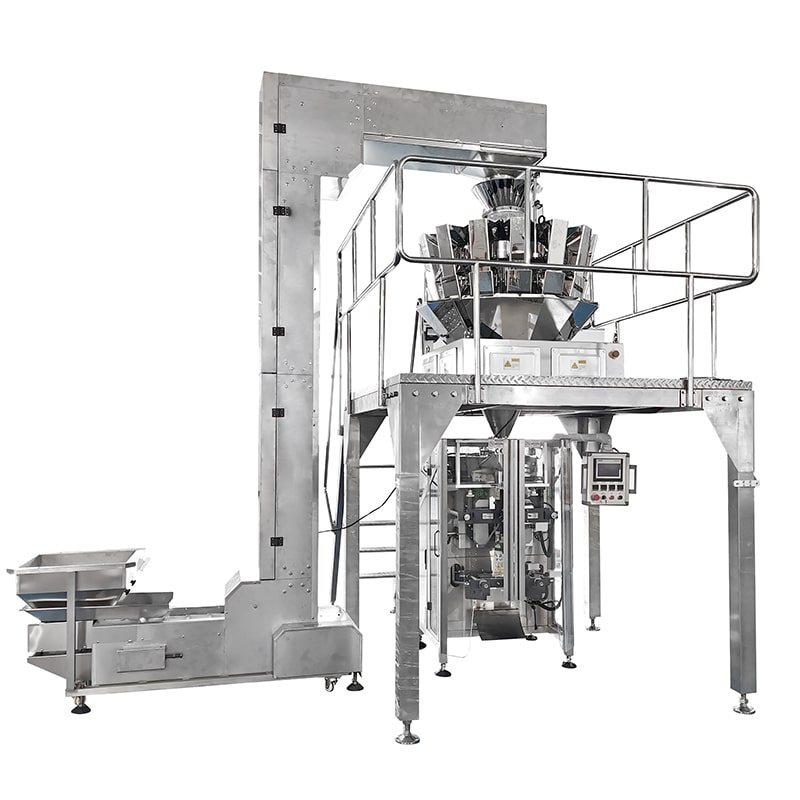

Beans multihead weigher vffs

Features

Various bag types applicable: like pillow bag, gusset bag, quad seal stand up bag, flat bottom stand up bag, brick shape bag, etc.

Bag size and weight are adjustable, easy to change the bag former in minute for different bag size without complicated process.

Siemens PLC control system, Siemens human-machine touch screen.

With servo motors ,this machine is able to achieve accurate positioning, fast smoothly speed ,smoothly and stability running.

With auto alarm protection function, to minimize the loss.

Automatical process of measuring, feeding, filling, bag making, printing.

Food grade stainless steel 304, safe and durable.

With 4 temperature controllers. Each heating block is controlled with individual temperature controller to acheive higher temperature stability.

Options

1. Date printer

2. Hole punch (Euro slot or round)

3. Gas flush

4. Tear notch

5. In-feed and take-away conveyors

6. Metal detectors

7. Label applicators

8. Checkweighers

Technical Specification

Model	SF-2.0T	SF-3.0T
Bag sizes	L 80-400mm W 80-250mm	L 100-480mm W 150-350mm
Packing speed	5-80bags/min	5-35bags/min
Measuring range	100-3000ml	300-5000ml
Packing material	OPP/CPP, OPP/PE, PET/PE, PE	OPP/CPP, OPP/PE, PET/PE, PE
Consumption	6-8kgf/cm2, 0.15 m3 /min	6-8kgf/cm2, 0.15 m3 /min
Power and voltage	AC380V, three phase, 50-60HZ, 5KW	AC380V, three phase, 50-60HZ, 5.75KW
